Brand Name : LS
Model Number : LSIS
Certification : GB/T36276 IEC62619 IEC60730 UL1973 UL9540A
Place of Origin : China
MOQ : 2 units
Price : consult prices online
Payment Terms : T/T
Packaging Details : consult online
Rated Energy : 215kWh @ 0.5C
Rated Power : 100kW
Battery Type : Lithium iron phosphate (LiFePO₄), 3.2V/280Ah cells
Maximum Discharge Current : 173A
Operating Temperature : -20°C to +55°C
Cooling Method : Liquid cooling
Protection Level : IP55
Cycle Life : 6000 times @ 0.5C
The LSIS 100kW215kWh is a high-capacity energy storage system designed to provide industrial and commercial users with efficient, long-lasting, and secure energy solutions. With a rated energy of 215kWh and rated power of 100kW, it is engineered for on-grid and off-grid applications, offering reliable energy backup and peak shaving capabilities. It features advanced liquid cooling technology and a robust IP55-rated enclosure, making it suitable for outdoor use. The system's modular design allows easy expansion, and it integrates seamlessly with existing infrastructure, supporting up to 10 parallel units.
Product Type | LSIS 100KW215KWH |
Rated Energy | 215kWh@0.5C |
Rated Power | 105kW |
Rated Output Voltage | 380/400VAC |
Cell Capacity | 280Ah |
Cell Type | GSP71173204F,3.2V280Ah |
Configuration | 1P 240S |
Maximum Discharge Current | 173A |
Maximum Charging Current | 173A |
Frequency | 50/60 |
Operating Temperature Range | -20~+55℃ |
Communication Port | LAN,RS485 |
Cooling Method | Liquid Cooling |
Protection Level | IP55 |
Functional Safety | Class B |
Product Weight | =2900kg |
Dimensions | W1300*D1300*H2285 mm |
LifeCycle | 6000 times |

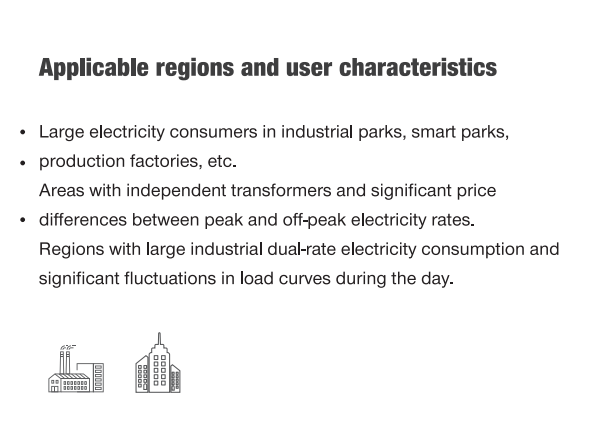

This product is ideal for large electricity consumers, including industrial parks, production facilities, and smart parks. It is also suited for areas with significant differences between peak and off-peak electricity rates, ensuring energy efficiency and cost savings. Its ability to support both grid-connected and off-grid operations makes it a versatile solution for various energy storage needs in microgrids, data centers, and other high-demand environments.
Supports global air and sea shipping.
![]() |
215kWh Industrial And Commercial Energy Solutions LSIS Lithium Battery Storage Images |
